Consew 206RB Walking Foot Machine

Description:

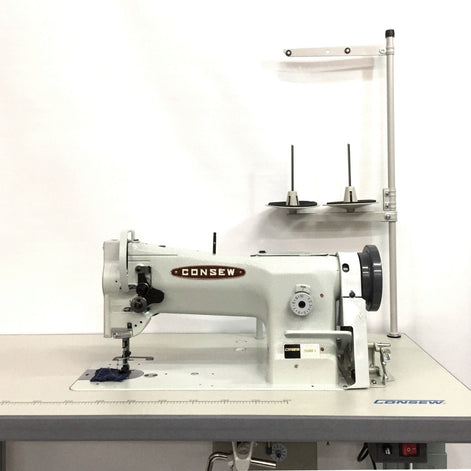

Consew 206RB-5 Single Needle Walking Foot Leather and Upholstery Sewing Machine.

Triple Feed, Heavy Duty, Single Needle, Drop Feed, Needle Feed, Compound Feed, Alternating (Walking) Presser Feet, Lockstich Machine.

Brand New Complete set with 3/4HP, 550 Watt servo motor.

With : Centralized Arm Lubrication, Reservoir-Oiled Hook with Micrometic Control Valve, Large Horizontal Axis Rotary Hook and Bobbin, Adjustable Reverse Feed, Locking Stitch Regulator, Safety Clutch.

Applications :

For sewing light to heavy-weight materials such as leather, vinyl, upholstery, synthetics, canvas and various coated and laminated products.
Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, sails, tents, camping trailer covers, awnings, umbrellas, tops, bags, luggage, handbags, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, canvas shoes, slippers, orthopedic appliances etc.

Features :

Extra long stitch - 2-1/2 S.P.I. (10mm)
Large Bobbin. Bobbin can be changed without removing object being sewn
Thread release finger (for heavy thread)
High presser foot lift - 9/16" (14mm)
Centralized arm lubrication. Reservoir-oiled hook with micrometric control valve
All gear driven hook mechanism. Large horizontal axis hook
Safety clutch with push-button re-engagement
Adjustable reverse stitching can be same length as forward stitch
Simple adjustment permits raising and lowering of the center foot which allows for sewing different thicknesses of material and thus assures positive stitching
Walking feet, needles and other attachments interchangeable with Consew models 226R-2, 255RB-2
Needle plate, foot and feed dog can be changed for special operations
Standard attachments easily installed
Compound feed, walking foot mechanism insures even feeding of material
Locking stitch regulator prevents changes in stitch length from vibration

Additional information :

Specifications :

Speed, Max. (S.P.M.) 3300*
Clearance Under Foot 9/16″ (14mm)
Needle Bar Stroke 1-5/16″ (33 mm)
Stitch Length, Max. 2-1/2 s.p.i. (10 mm)
Needle 135 x 17
Bobbin Metal: 18034
Bobbin : M Size Large Capacity
Hook 18033
Work Space 10-5/16 (258 mm)
Bed Size 7″ x 18-7/8 (178 x 480 mm)
Stitch Type 301
* Speed depends on thread, material and operation.
Specifications subject to change without notice

Shipping:

Available for pick up only.
