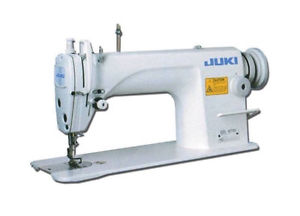

Brand New JUKI DDL-8700 High-Speed, 1-Needle, Lockstitch Industrial Sewing Machine.

Machine Head Only. Table top and power stand is not included in this purchase.

Juki's newly designed unique lockstitch machine, which perfectly matches clothing plaints for creating the 21st century fashion.

Newly designed machine head that was developed in pursuit of beauty.The optimum-balance and highly rigid machine head were created using the latest 3D-CAD design technology.Thanks to its low vibration and low noise feature, the machine head provides the operator with a comfortable work environment. In addition, the distance from the machine arm to the needle on the front of the machine head is sufficiently wide to allow easy handling of the sewing material.The machine inherits the desirable features, such as high-speed stitching performance 5,500rpm, extreme stitching performance, ease of operation, and reliability, from the highly evaluated previous JUKI lockstitch machines.

Sewing mechanism that demonstrates outstanding responsiveness to material to be sewn.
By thoroughly investigating and modifying the sewing mechanisms in order to achieve low-tension sewing, the machine flexibly responds to various kinds of materials and produces beautiful seams of consistent quality.

Maintainability was improved.Enhanced maintainability is ensured by the improved machine head, such as incorporation of an eccentric pin that is used to adjust the feed dog. In addition, the machine is provided with a mounting seat for attachment to improve workability while replacing the attachment and increasing the durability of the machine bed surface.

The machine has easy-to operate functions to achieve improved operability.
By providing a presser foot with a higher lift(13mm), a light-touch stitch dial, a throat plate with marker grooves that can be used as guide for seam allowance, and other easy-to-operate functions, the burden on the operator is lightened, and productivity is further increased.

Features :

Single Needle Lockstitch
Up To 5500 Stitches Per Minute
Fully Automatic Lubrication
1/2 Inch Foot Lift By Knee Lever
1/4 Inch Foot Lift by Hand Lever
Maximum 5mm Stitch Length at the longest stitch length setting
Minimum 6 Stitches Per Inch at the longest stitch length setting.
Industrial Sewing Machine for apparel/interior fabrics, not upholstery
US Warranty: 90 Days labor on defects in materials and workmanship.

Specifications :

Maximum foot lift: 13 mm
Maximum stitch length: 5 mm
Maximum stitches: 6 stitches per inch.
Needles: 9-18 DBX1 (16x231) up to size 19
Sewing Speed max. 5,500 spm
Stitch Length max. 5 mm
Presser Foot Lift by hand, max. 5.5 mm; by knee, max. 13 mm
Needle Bar Stroke 30.7 mm
Hook auto-lubricating full rotary hook

JUKI DDL-8700 1-Needle Lockstitch Straight Stitch Sewing Machine - Head Only
